AMI 4,0 PREMIUM

Hydraulic 2-Post Lift
  • Load capacity 4000 kg
  • Lever control
  • Asymmetric design
  • Economically profitable hydraulic drive
  • Double-acting roof dent protection
  • Different height variants
    4100 mm | 4400 mm | 4600 mm | 4800 mm
  • Maximum arm height 2040 mm
  • Set of extensions 50 mm | 100 mm
  • Ergonomic cover
  • Arm lock (SLS - self locking system)
  • Easy to operate
  • Czech made
  • Complies to requirements of ČSN EN 1493:2023
AMI 4,0 PREMIUM

TECHNICAL SPECIFICATION

  • 4000 kg

    Maximum load capacity

    33 s

    Maximum lifting time

    30 s

    Minimum lowering time

    TN-S 3/N/PE 400/230V AC, 50 Hz

    Electric system

    3,0 kW

    Motor power

    2010 mm - 2040 mm

    Maximum arm height HO

    90 mm - 120 mm

    Minimum arm height HU

    726 mm - 1447 mm

    Extension of 3-stage arm L3D

    930 mm - 1480 mm

    Long arm extension LL

    3920 mm | 4250 mm | 4450 mm | 4650 mm

    Maximum clearance height HL

    4100 mm | 4400 mm | 4600 mm | 4800 mm

    Total height HG

    2850 mm

    Post clearance BL

    2505 mm

    Clearence width BH

    3420 mm

    Overall width BG

  • 590 mm - 1400 mm

    Extension of double-jointed arm LDJ

    570 mm - 890 mm

    Short arm extension LK

    845 mm - 1265 mm

    Extension of lowered long arm LLLp

    615 mm - 900 mm

    Extension of lowered short arm LKLp

  • 4,10 m

    Height of the lift

    4,15 m

    Length

    1,12 m

    Width

    0,51 m

    Height

    705 kg (lift without extensions)

    Weight

    4,40 m

    Height of the lift

    4,45 m

    Length

    1,12 m

    Width

    0,51 m

    Height

    720 kg

    Weight

    4,60 m

    Height of the lift

    4,65 m

    Length

    1,12 m

    Width

    0,51 m

    Height

    730 kg

    Weight

    4,80 m

    Height of the lift

    4,85 m

    Length

    1,12 m

    Width

    0,51 m

    Height

    740 kg

    Weight

    • The lift is in partially disassembled condition, packed in a transport frame including accessories.

    • Professional assembly by trained service personnel is necessary. Professional assembly is a condition for the validity of the warranty.

    • For assembly, a space 100 mm higher than the total height of the lift is required.

    • Hydraulic medium: OHHM 32, 8 litres

  • C20/25

    Concrete quality

    135 mm

    Concrete quality

    100 mm

    Depth of effective anchorage

    M16x140 mm

    Anchor dimensions (diameter x length)

    TN-S 3/N/PE 400/230V AC, 50 Hz

    Electric system

    20/3/B (16/3/B - Motor power 2,2 kW)

    Residual circuit breaker

    IP 54

    Ingress protection

    Flexible cable H05VV-F

    Supply

    - change of technical data reserved

AMI 4,0 PREMIUM

MODEL CONFIGURATIONS

CONTROL AND ACCESS SIDE = 4 x double-jointed arm
(590 mm - 1400 mm)

CONTROL SIDE = 2 x 2-stage short arm
(570 mm - 890 mm)

ACCESS SIDE = 2 x double-jointed arm
(590 mm - 1400 mm)

CONTROL SIDE = 2 x 2-stage long arm
(930 mm - 1480 mm)

ACCESS SIDE = 2 x double-jointed arm
(590 mm - 1400 mm)

CONTROL SIDE = 2 x 3-stage arm
(726 mm - 1447 mm)

ACCESS SIDE = 2 x double-jointed arm
(590 mm - 1400 mm)

CONTROL AND ACCESS SIDE = 4 x 2-stage lowered short arm
(615 mm - 900 mm)

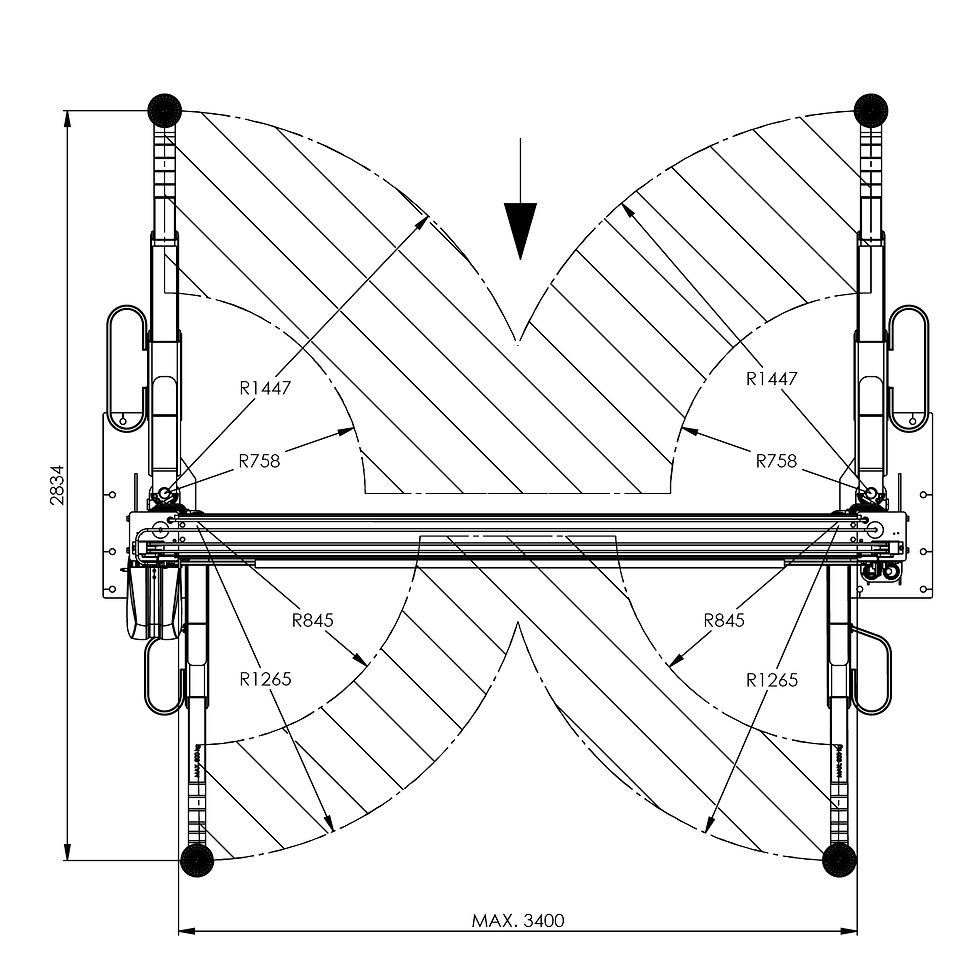

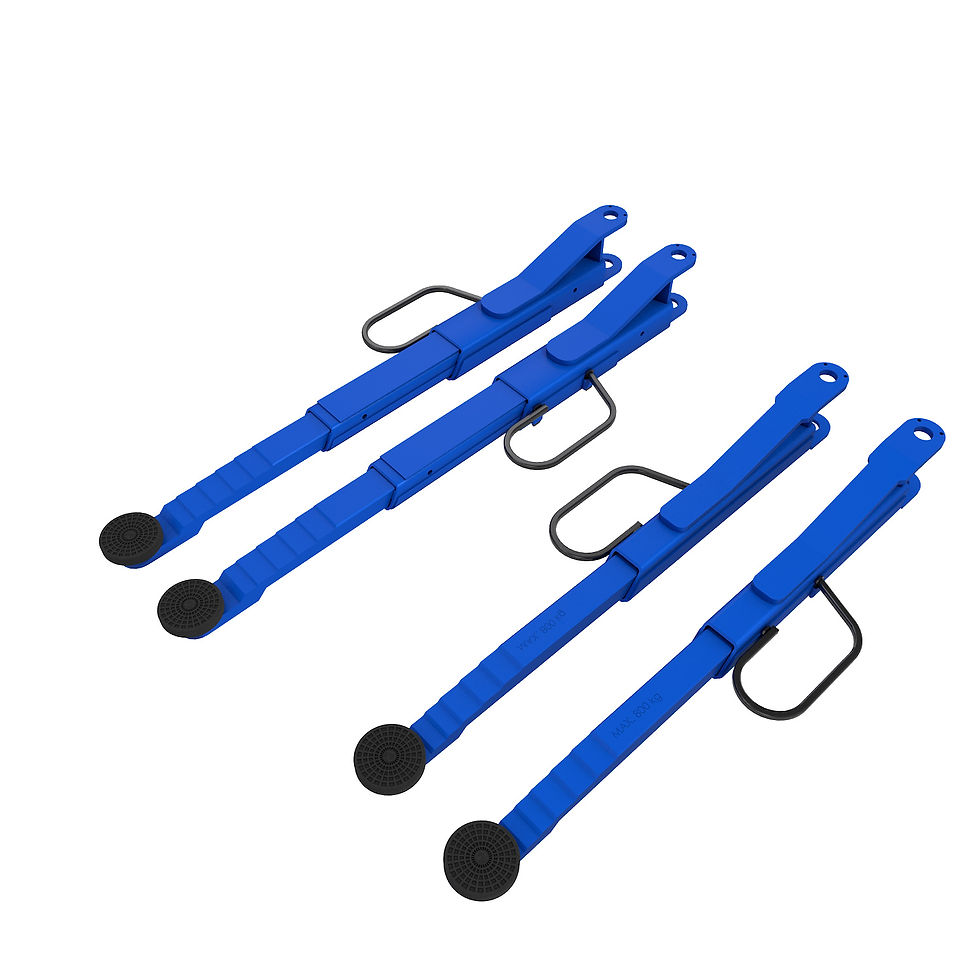

CONTROL SIDE = 2 x 2-stage lowered short arm
(615 mm - 900 mm)

ACCESS SIDE = 2 x 2-stage lowered long arm
(845 mm- 1265 mm)

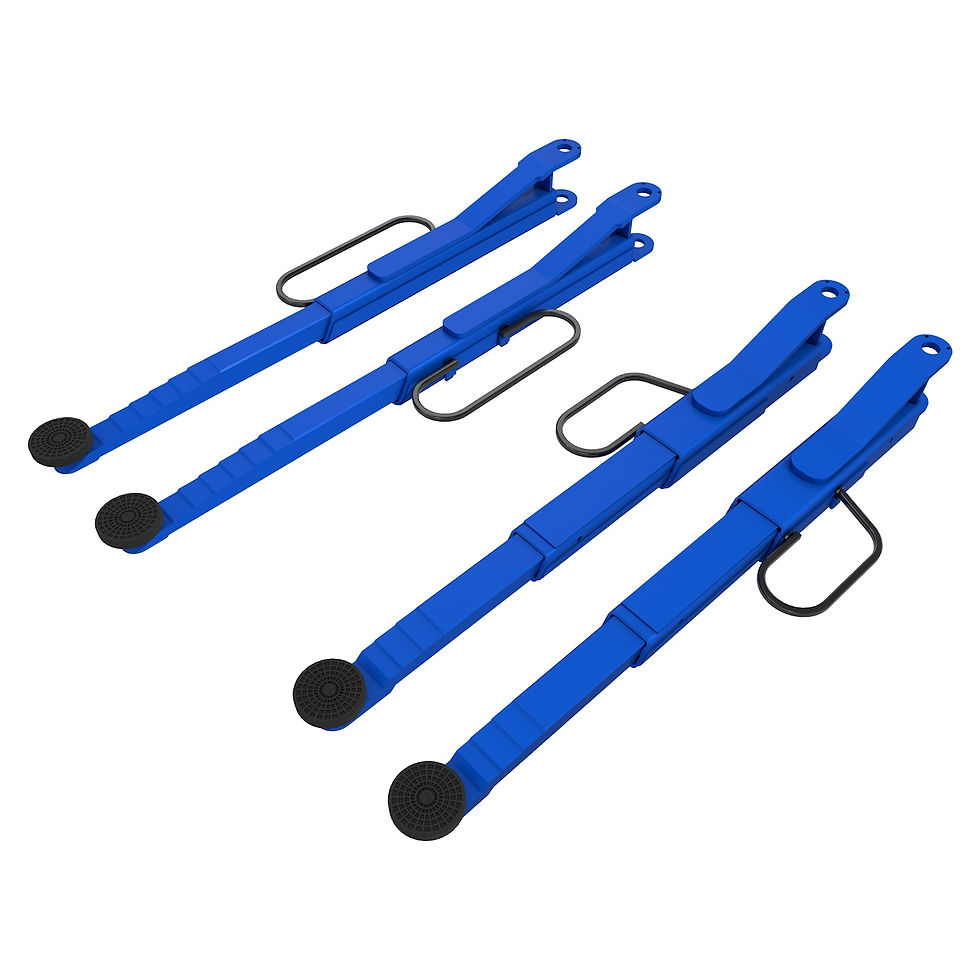

CONTROL SIDE = 2 x 2-stage long arm
(930 mm - 1480 mm)

ACCESS SIDE = 2 x 3-stage arm
(726 mm - 1447 mm)

CONTROL SIDE = 2 x 3-stage arm
(726 mm - 1447 mm)

ACCESS SIDE = 2 x 2-stage long arm
(930 mm - 1480 mm)

CONTROL AND ACCESS SIDE = 4 x 4 x 3-stage arm
(726 mm - 1447 mm)

CONTROL SIDE = 2 x 2-stage short arm
(570 mm - 890 mm)

ACCESS SIDE = 2 x 3-stage arm
(726 mm - 1447 mm)

CONTROL AND ACCESS SIDE = 4 x 2-stage long arm
(930 mm - 1480 mm)

CONTROL AND ACCESS SIDE = 4 x double-jointed arm
(570 mm - 890 mm)

CONTROL SIDE = 2 x 2-stage short arm
(570 mm - 890 mm)

ACCESS SIDE = 2 x 2-stage long arm
(930 mm - 1480 mm)

AMI 4,0 PREMIUM

ADDITIONAL ACCESSORIES

030212-00-00

2-STAGE LONG ARM
LOW PROFILE

030217-00-00

2-STAGE SHORT ARM
LOW PROFILE

092212-00-00

2-STAGE LONG ARM

092217-00-00

2-STAGE SHORT ARM

092208-00-00

3-STAGE ARM

492220-00-0S
492221-00-00
492222-00-00

DOUBLE-JOINTED ARMS 4,0
SET (min. height: Hu=90mm; extension: L=590-1400mm)

492100-00-00

ARM LOCK KIT "AS"

030294-00-0S

VULCANIZED SUPPORT "ROUND"
FOR ARMS WITH LOW PROFILE SET (dia. 126 mm)

092294-00-0S

VULCANIZED SUPPORT "ROUND"
SET (dia. 126 mm)

092295-00-0S

VULCANIZED SUPPORT "RECTANGULAR"
SET (148x80 mm)

092296-00-0S

VULCANIZED SUPPORT "RECTANGULAR"
SET (120x70 mm)

398294-03-00

ADAPTER "PIN"
COMPLETE

397299-00-00

ADAPTER "V"
COMPLETE

498297-00-00

ADAPTER "U I"
COMPLETE

498298-00-00

ADAPTER "U II"
COMPLETE

398296-00-00

ADAPTER "ROUND"
COMPLETE

80301 | 80302
80303 | 80304

SUPPORT EXTENSIONS
(50 mm) | (100 mm) | (150 mm) | (200 mm)

092093-30-0S

EXTENSION AND SUPPORT HOLDER
SADA

092880-00-00

TROLLEY COVER "PUR3"
SET

092870-00-00

TROLLEY COVER "PUR6"
SET

000000-00-52

LARGE BASE FOR LOWER GROUND STRENGTH

092851-00-00

ADJUSTABLE SUPPORT LONG
(max. load capacity 3000 kg/lift)

092853-00-00

ADJUSTABLE SUPPORT MEDIUM
(max. load capacity 3000 kg/lift)

092852-00-00

ADJUSTABLE SUPPORT SHORT
(max. load capacity 3000 kg/lift)

000000-00-58

ANTI-CORROSION SPRAY TREATMENT

092094-00-00

ELECTRO BOX - EB1
(2x230V)

092094-02-00

ELECTRO BOX - EB1-4
(4x230V)

092095-00-00

ELECTRO BOX - EB2
(2x230V, AIR QUICK COUPLER)

092096-00-00

ELECTRO BOX - EB3
(2x230V, AIR QUICK COUPLER, 2xDATA CONNECTOR)

092093-00-00

INTEGRATED POWER SUPPLY FOR CHARGING STATIONS

092092-00-0M
092092-00-0S

AIR REEL
"MASTER" | "SLAVE"
(15 m)

092091-00-0M
092091-00-0S

ELECTRIC REEL "MASTER" | "SLAVE"
(12 m; thermal fuse)

000000-00-35

VARIABILITY OF LIFT WIDTH
2850 mm – 3400 mm

000000-00-36

VARIABILITY OF LIFT HEIGHT
4200 mm - 4800 mm

000000-00-54

NON-STANDARD DEMAND
(HEIGHT/ WIDTH)

000000-00-17

DIFFERENT COLOR VERSIONS DHZ ACCORDING TO RAL COLOR CHART
